Active Frame Plugs ™

$52.00

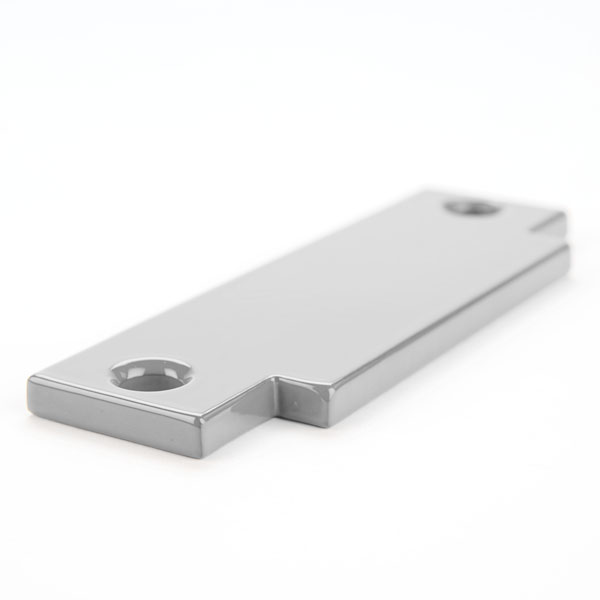

Active Frame Plugs™ (Adjustable and Snap-In) are the solution for holes in hollow metal doors and fire rated frames up to 90 minutes! Some door frames have holes to accommodate certain locks or latches. These holes create an escape route for fires and allow it to spread. Active Frame Plugs™ eliminate this risk. Adjustable and Snap-in Plugs come in various sizes but the adjustable plugs can be additionally sized to fit odd spaces.

Doors with the correct hardware and accessories are vital when maintaining a fire within any structure. The ability for fire rated doors to block the passage of fire and smoke while complying with NFPA standards is directly affected by clearances, holes and breaks around the perimeter of the door.

Your fire door should be a tightly sealed barrier between you and a fire, Active Fire Door Products provide hardware and accessories for clearances up to 90 minutes for steel and wood fire rated door frames, and hollow metal doors in accordance with NFPA requirements.

Intertek Tested and Certified for fire rated frames and hollow metal doors for up to 90 minutes.

This product will meet the requirements of UL 10C, UBC 7-2, NFPA 252, and NFPA 80



2010 – NFPA 80: 6.3.1.7.1- The clearances between the top and vertical edges of the door and frame, and the meeting edges of doors swinging in pairs, shall be 1/8” +/- 1/16” for steel doors and shall not exceed 1/8” for wood doors.

2010 – NFPA 80: 5.2.4.2 (1)- No open holes or breaks exist in surfaces of either the door or frame.



2019-NFPA 80

  • 5.2.3.5.2 (2) No open holes or breaks exist in surfaces of either the door or frame.

2016-NFPA 80

  • 5.2.3.5.2 (2) – No open holes or breaks exist in surfaces of either the door or frame.

2013-NFPA 80

  • 5.2.3.5.2 (2) – No open holes or breaks exist in surfaces of either the door or frame.

2010-NFPA 80

  • 5.2.4.2 (1) – No open holes or breaks exist in surfaces of either the door or frame.
